Submersible ComboTail Light Kit

Product Introduction

The Submersible ComboTail Light Kit  integrated with advanced light transfer technology, offer an exceptional blend of efficiency and performance for a variety of applications. Specifically designed for marine trailer use, these Submersible ComboTail Light Kit  a universal mount, ensuring they can be conveniently installed on a wide range of trailer types

With a hard-wired configuration and a separate ground wire, these SMD LEDs provide a reliable and stable electrical connection, reducing the risk of connectivity issues. Whether you need them for individual units or in larger quantities, these LEDs are available for purchase in both bulk and polypack packaging, making them a flexible and convenient choice for your lighting needs.

Product Parameter (Specification)

Product Feature And Application

· INCLUSION - Kit includes (2) stop/tail/turn lights driver side (Left) & passenger side (Right), (2) Marker and Clearance lights, a wire harness of 25’ & 4’ long wires with standard 4-way plugs, black coated license plate bracket with corrosion resistance, and mounting hardware

· DOT SAE Compliant - Meets SAE/FMVSS requirements, lens marking “STI”, “AP2” on the side marker, and “L” on the license plate light, “AP2PC” on the Marker and Clearance light

· APPLICATIONS - Ideal for under or over 80” truck & trailer (boat trailer and universal), RV, camper, bus, caravan, tractor, van, snowmobile & other Specialty Vehicles; Stop/Tail/Turn/License/Mark Combined Functions; 12V Operating Voltage; Stud mount on industry standard 2” centers

·

· LATEST LED TECHNOLOGY - 2835 SMD LEDs, super bright and long life span up to 50,000 hours in RED/AMBER in an Acrylic lens and durable plastic housing

· DIMENSIONS: 5.14 x 4.57 x 3.32 inches (Under 80" Vehicle) & 5.824 x 4.57 x 3.32 inches (Over 80" vehicle); AMPERAGE (mA) - Stop/Turn: 200 Milliamps; Tail/Mark/License: 160 Milliamps; WATTAGE - 10W

·

· INDUSTRY STANDARD - universal & interchangeable with most major brands

· WEATHERPROOF - Submersible (IP68 rated)

·LED light last 30-40 times longer than incandescent bulbs ·Corrosion-resistant housing, waterproof ·22 ft. split Y-style harness ·Kit includes: 2 tail lights, 2 side marker lights, wiring

harness, license plate bracket, and mounting hardware ·DOT FMVSS 108 compliant

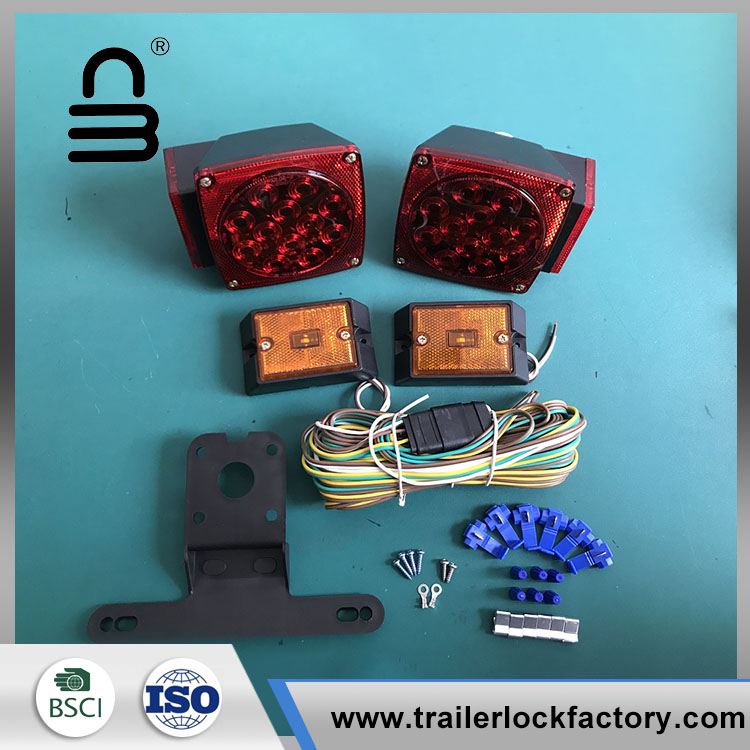

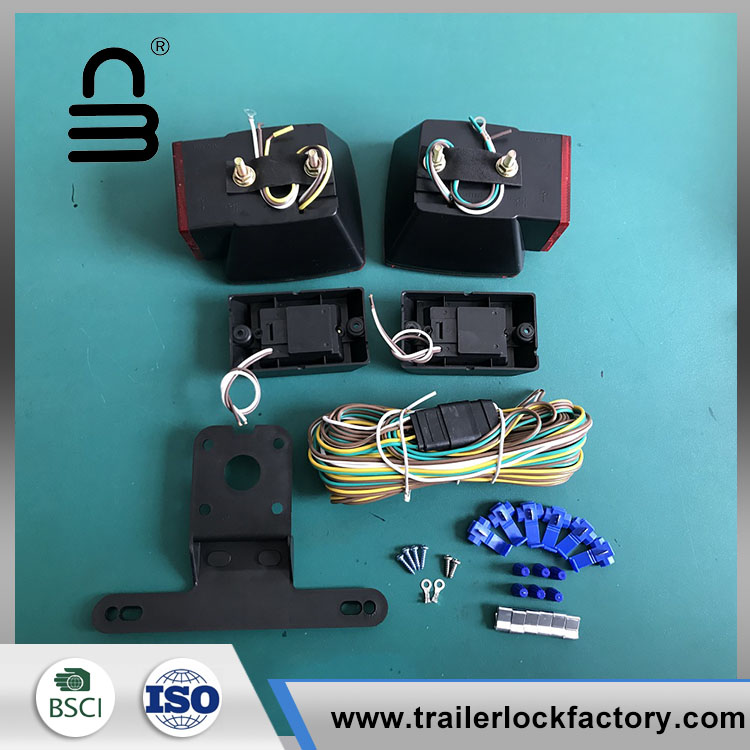

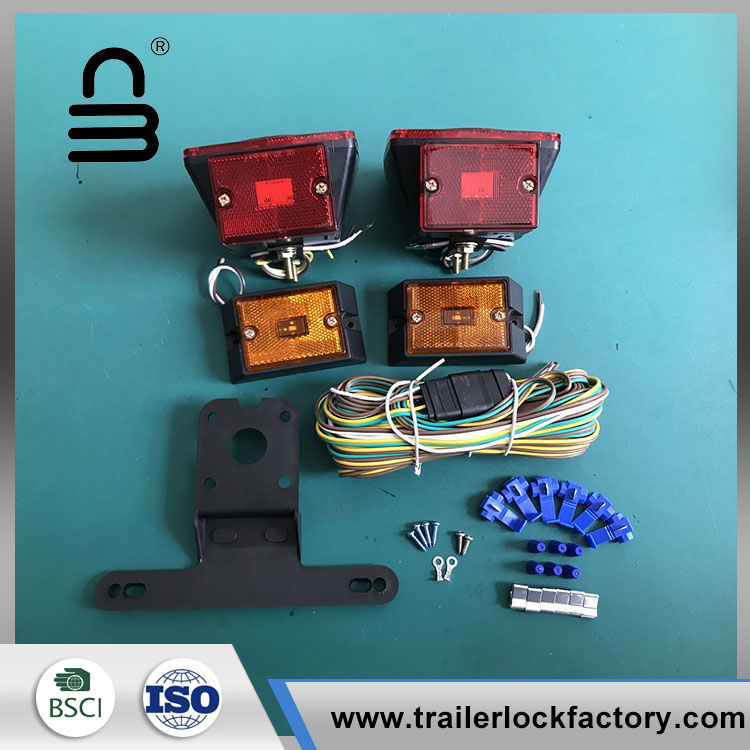

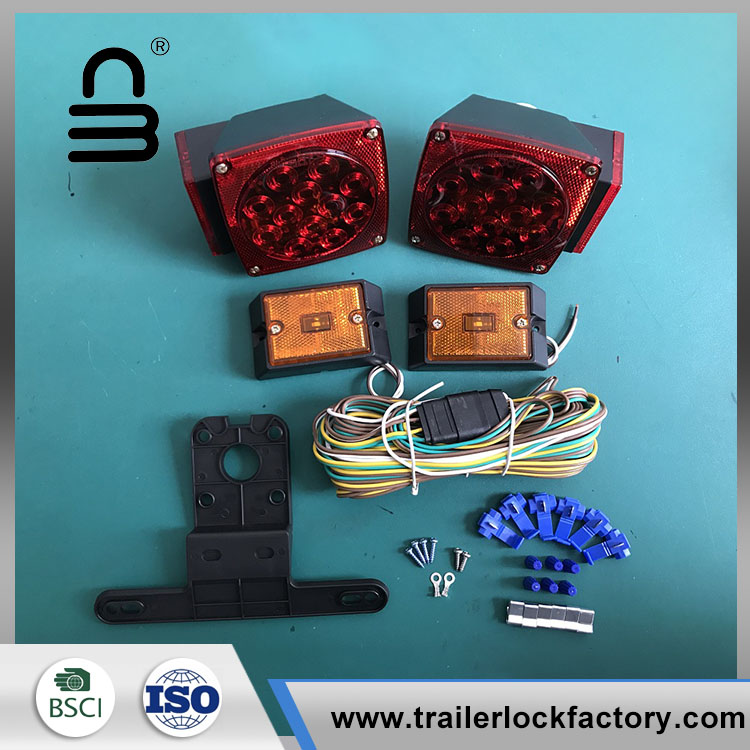

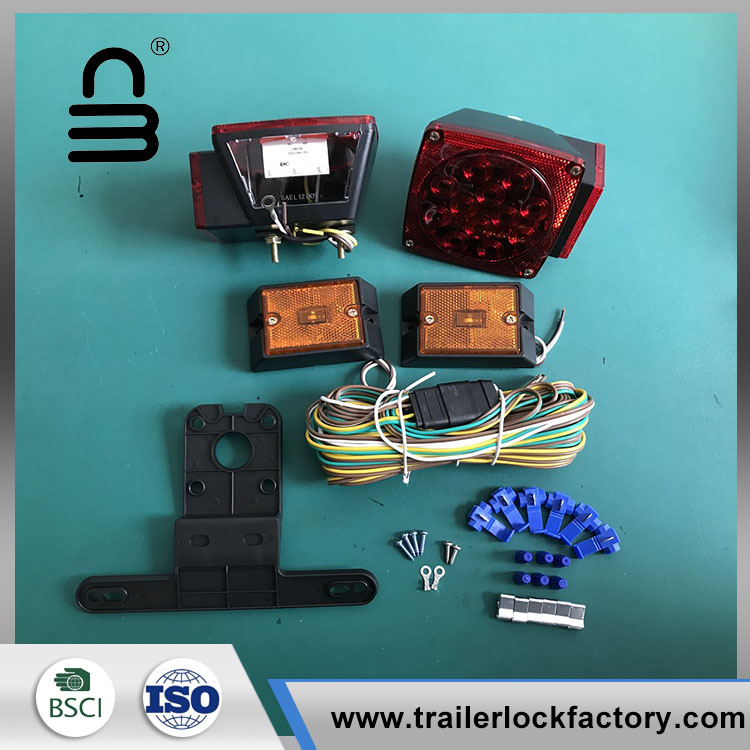

Product Details

(2) Stop/Tail/Turn Lights - driver side (Left) & passenger side (Right)

(2) Marker & Clearance Lights

Wire Harness of 25’ & 4’ long wires w/ Standard 4-way Plugs

Black-coated corrosion-resistant License Plate Bracket

Mounting Hardware
